Introduction: A Common Industry Pitfall
In energy storage and power battery system design, many engineers and sales professionals confuse C-rate with power rate. Many internal documents use non-standard abbreviations such as 0.5P or 0.3P. Although the values seem identical to 0.5C, they represent completely different discharge logic. Mixing them up will cause BMS parameter errors, inverter selection deviation, cell overcurrent and overheating, leading to system failure, capacity attenuation and even safety risks.
Basic Parameter Calculation: Same Number, Different Essence
Calculation baseline: 314Ah LFP single cell, nominal voltage 3.2V
1.What is 0.5C (Standard Constant Current Rate)
C-rate is the global standard for battery charge/discharge definition. Its core logic: Discharge Current = Cell Capacity × C-rate, maintaining constant current regardless of voltage fluctuation.
Power @ nominal voltage = 3.2V × 157A = 502.4W
2.What is 0.5P (Non-Standard Constant Power Rate)
Important Reminder: 0.5P is not an official industry term. The letter P here does not stand for Parallel, but is an internal abbreviation for Power rate.
314Ah cell rated power = 3.2V × 314Ah = 1004.8W
0.5P constant power = 1004.8W × 0.5 = 502.4W

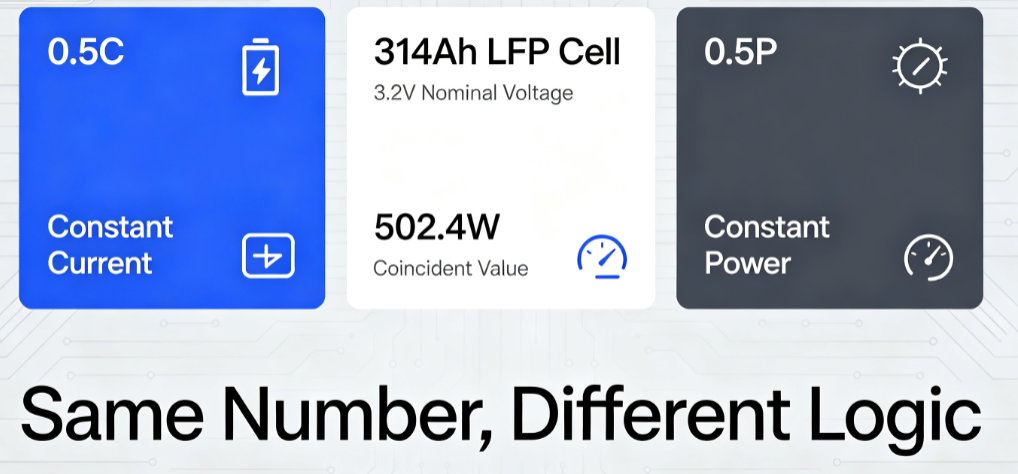

Key Coincidence: The values of 0.5C and 0.5P are equal only at the nominal voltage (3.2V), which is the main cause of industry confusion.
Core Difference: Complete Divergence Under Voltage Fluctuation
In actual operation, battery voltage fluctuates from 3.65V (full charge) to 2.8V (cut-off voltage). Once the voltage changes, 0.5C and 0.5P show completely different operating parameters, directly affecting system safety.
Scenario 1: Low Voltage Discharge (2.8V)
0.5C Mode (Constant Current): Current fixed at 157A, power drops with voltage
Actual Power = 2.8V × 157A = 439.6W (Safe and standard operating condition)
0.5P Mode (Constant Power): Maintain 502.4W fixed power, current rises as voltage drops
Actual Current = 502.4W ÷ 2.8V = 179.4A (Overcurrent, exceeding standard 0.5C current)
Scenario 2: High Voltage Full Charge (3.65V)
0.5C constant current: 157A, power 573W
0.5P constant power: 502.4W, current only 137A
At high voltage, 0.5P discharge capability is much lower than 0.5C, resulting in insufficient system output and unqualified power generation.
Forbidden Misconceptions
1. Do not confuse Power (P) with Parallel (P) — they are completely irrelevant;
2. Do not equate 0.5C with 0.5P simply because their values match at nominal voltage;
3. Never set battery current limit parameters based on constant power P-rate.
