PRESENTATION FOR THE JK BMS BATTERY BOX

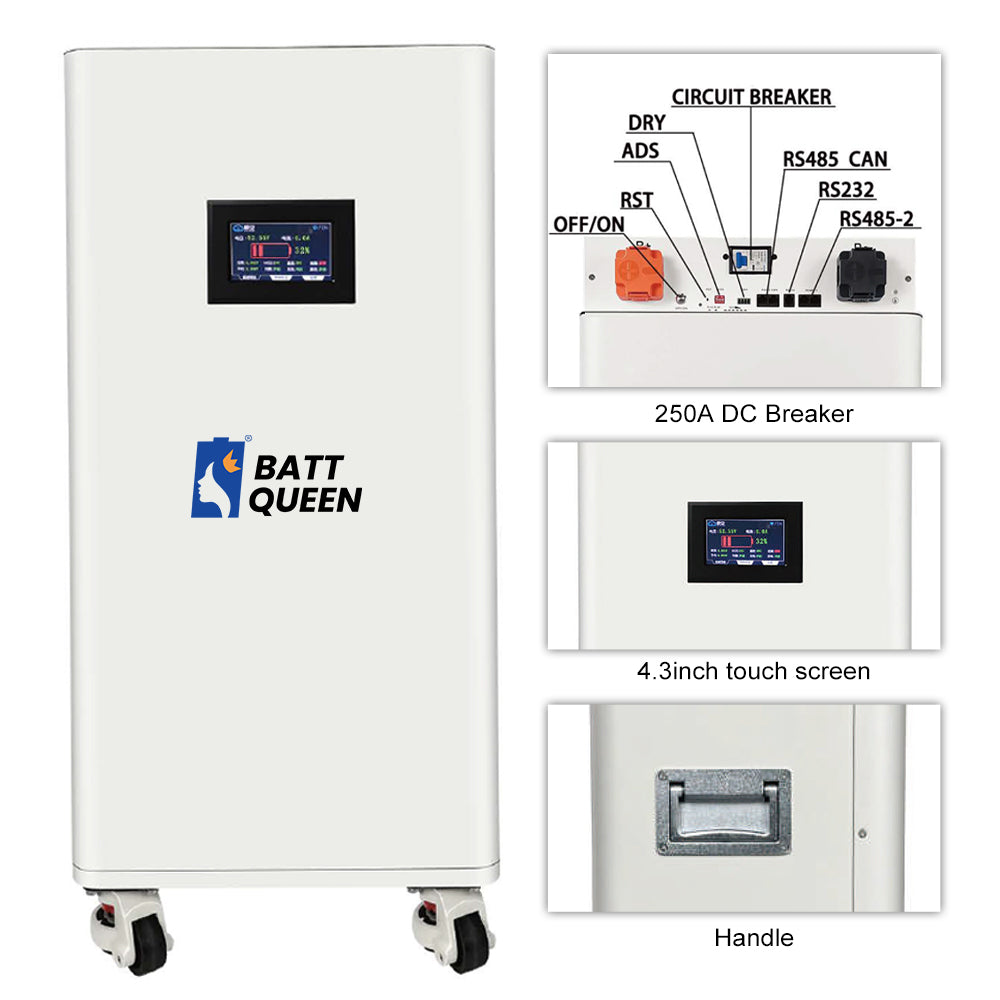

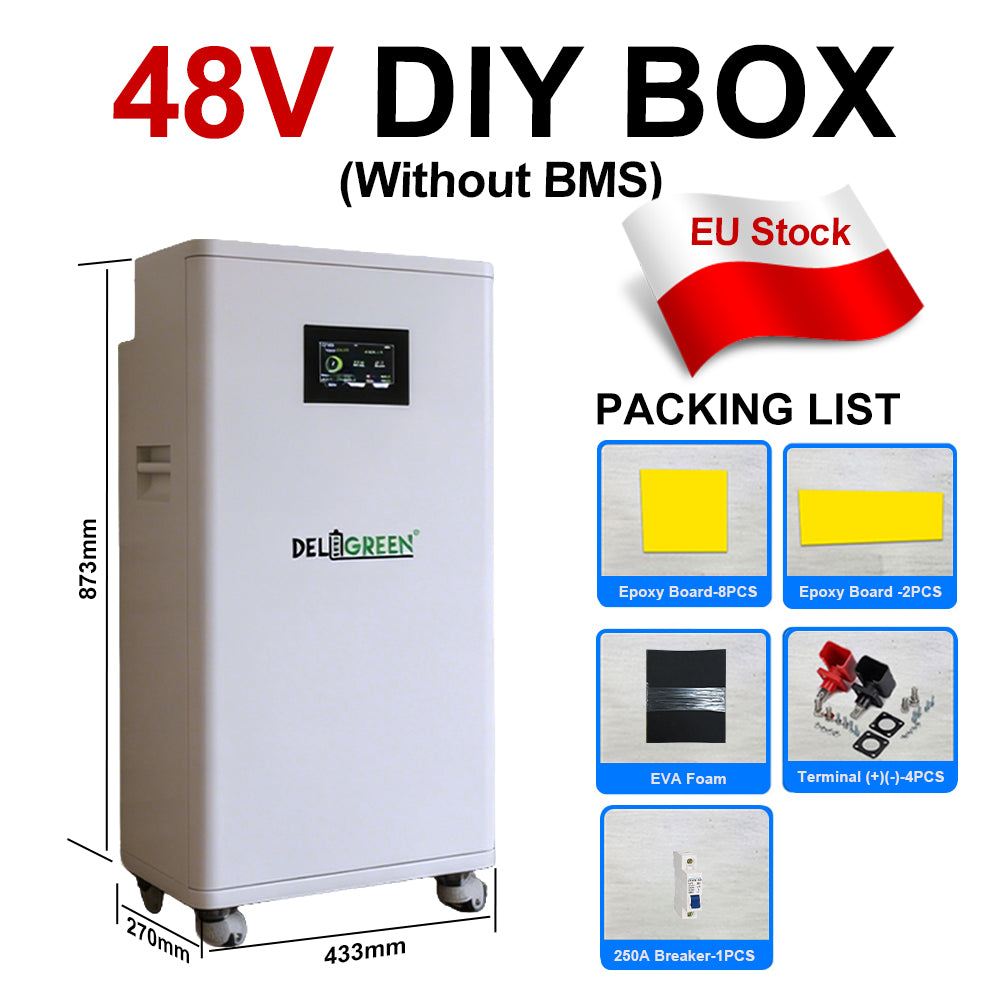

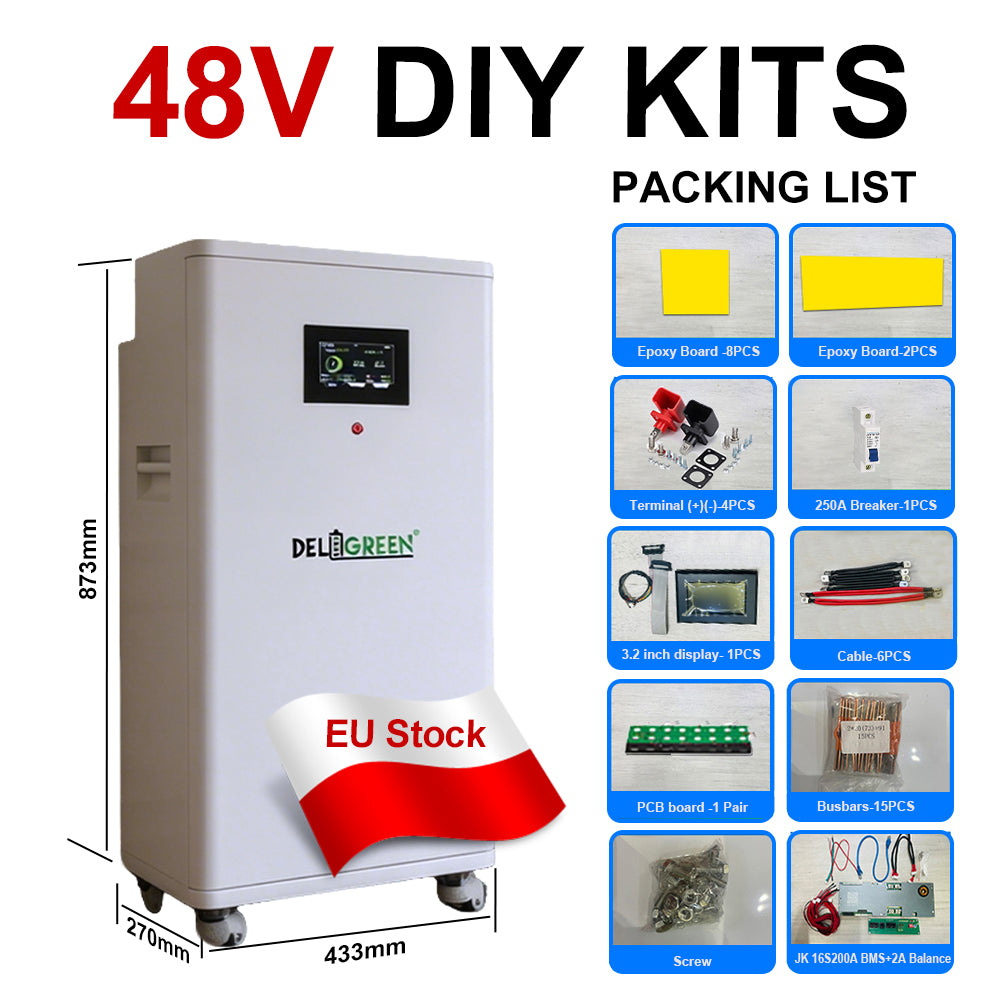

This box is designed for building 51.2V 280AH 302AH 314AH 320AH solar battery pack. It supports a 16S1P configuration to achive a 15-17kwh home solar storage system. The box is cut to fit JK BMS and 4.3 inch LCD. You can choose empty box if you already have the suitable Jikong smart BMS and the LCD. You are welcomed to buy a full sets to save your time and energy for searching for different parts from different stores. The box is default to included a DC breaker.

About Delivery

This product will be shipped from EU if your address is in Europe. It is door to door delivery, vat free.

Suitable Batteries Model

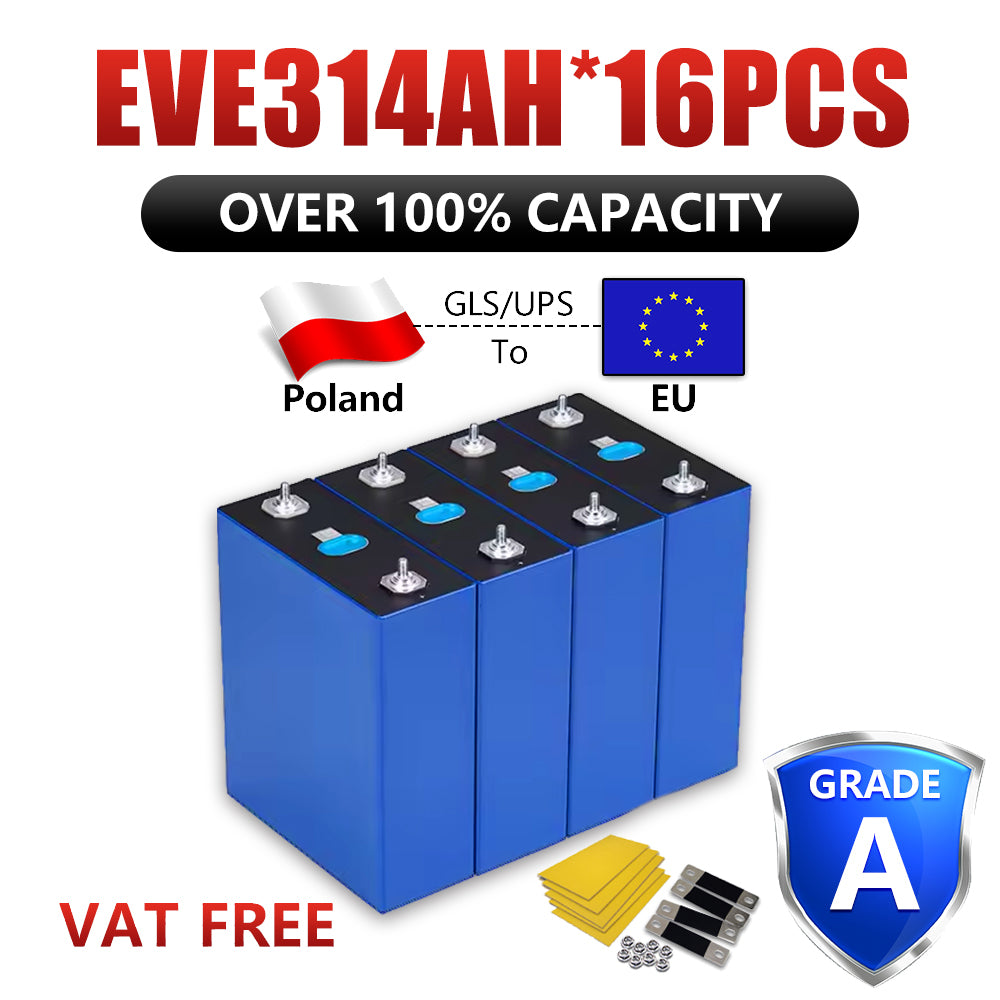

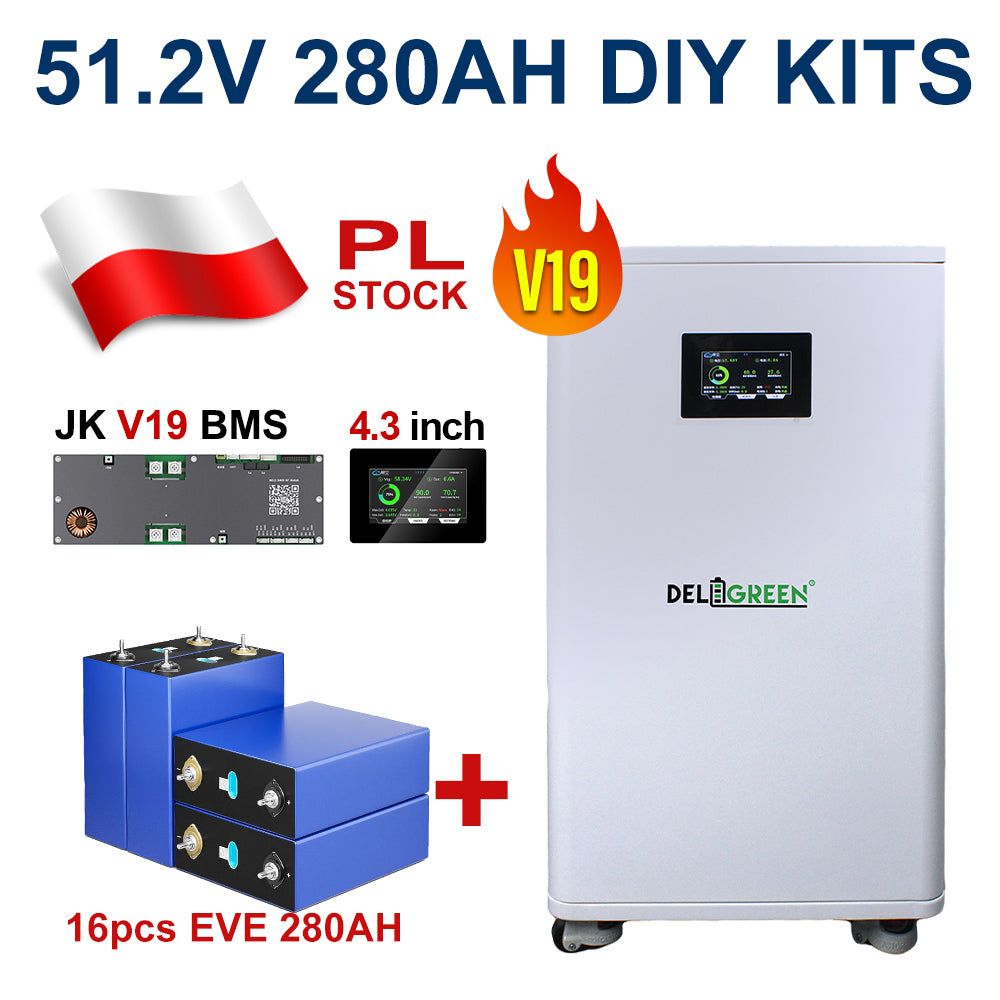

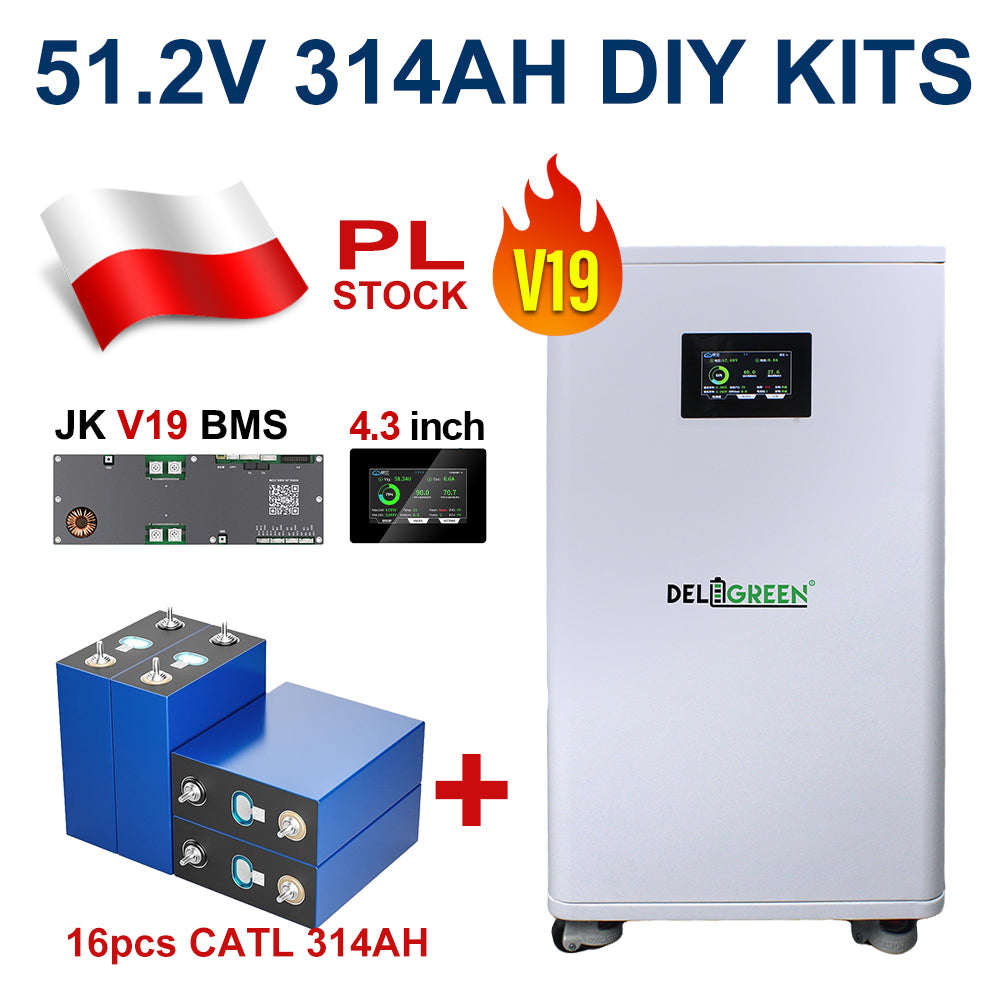

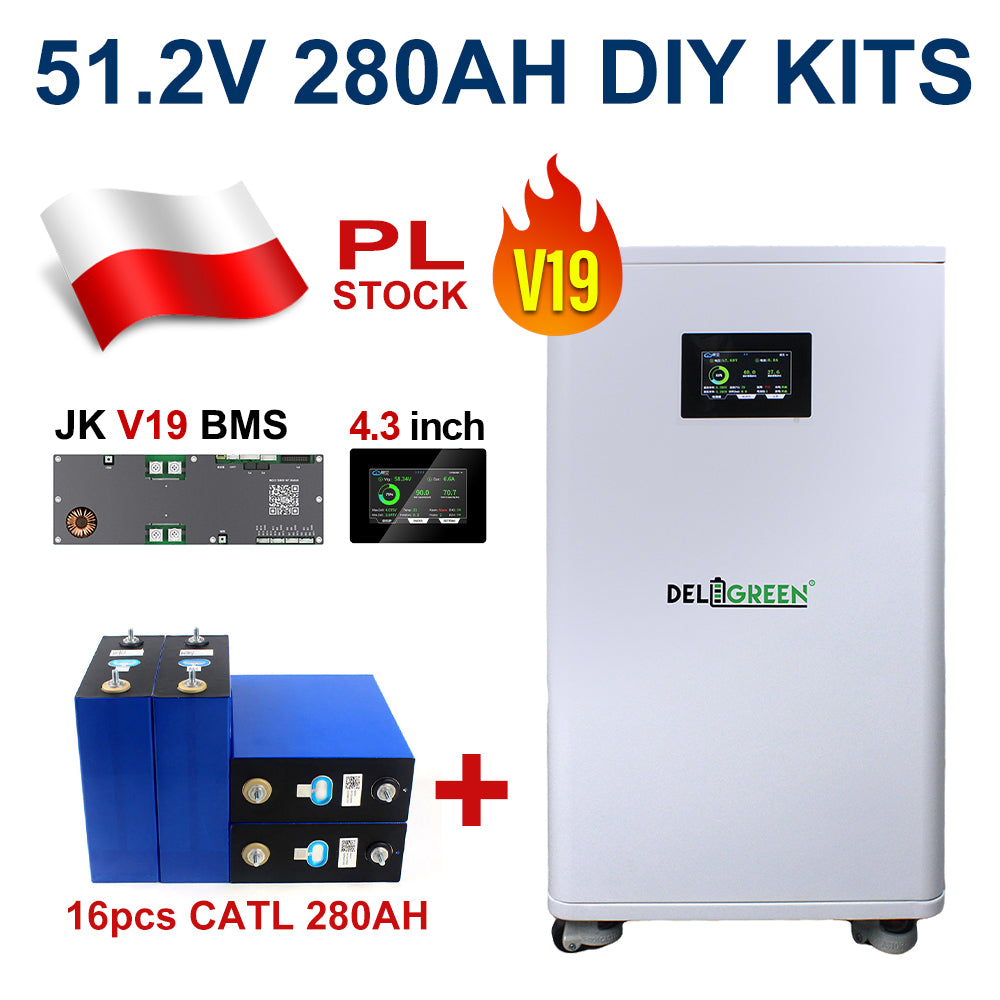

This box is good for build 48V 280AH battery pack, it will also suitable for EVE280AH, EVE302AH, EVE314AH, CALB280AH, CALB314AH, CATL280AH, CATL314AH, REPT280AH, Hithium 280AH, Lishen 271AH, etc.

Technical Assembly Guide for 48V LiFePO4 Battery Pack

Product Overview This DIY battery pack assembly solution features a 48V LiFePO4 Battery Case designed for customizable energy storage systems. The kit includes:

• JK BMS with integrated LCD display

• 16-cell LiFePO4 battery configuration

• Universal compatibility with mainstream battery models

• Advanced communication interfaces

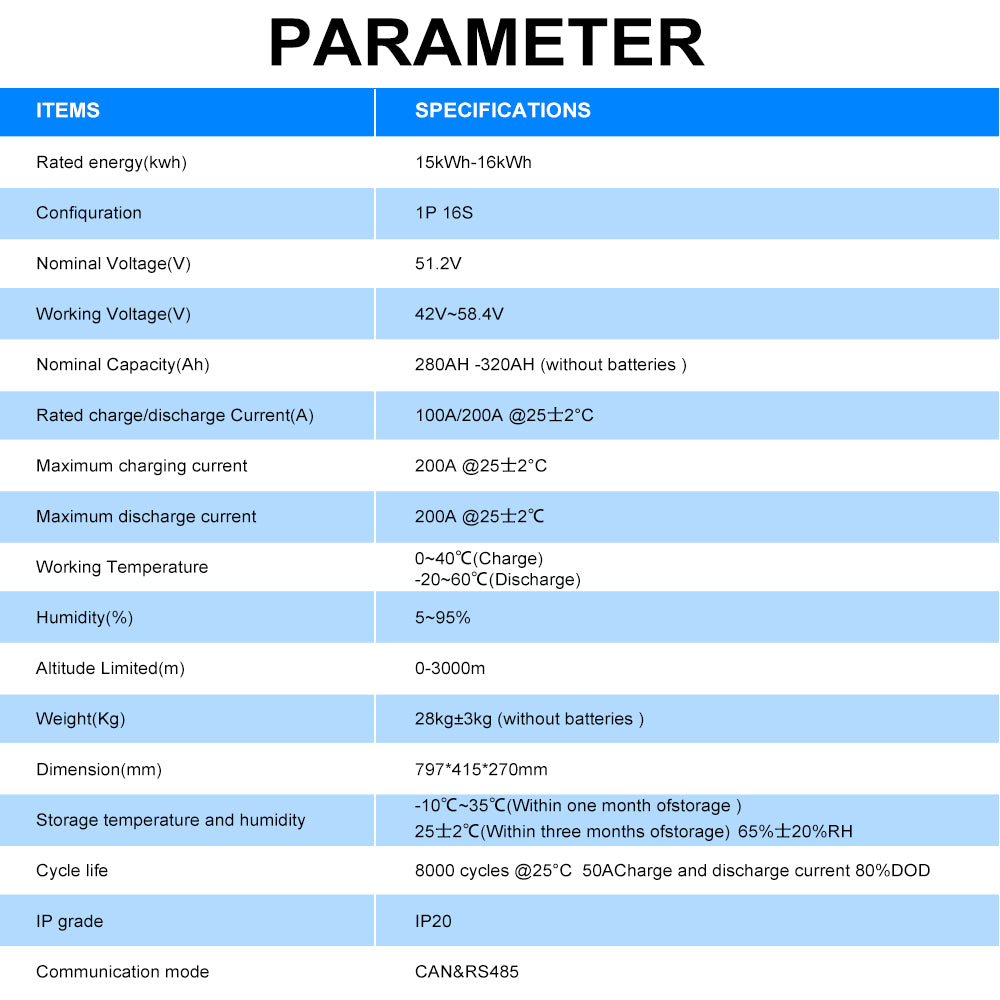

Key Specifications

• Voltage: 48V nominal

• Battery Configuration: 16 x LiFePO4 cells (16S1P)( Battery is not included)

• Compatible Models:

  • EVE 280AH / EVE304A / EVE314AH

  • CATL280AH

  • CATL314AH

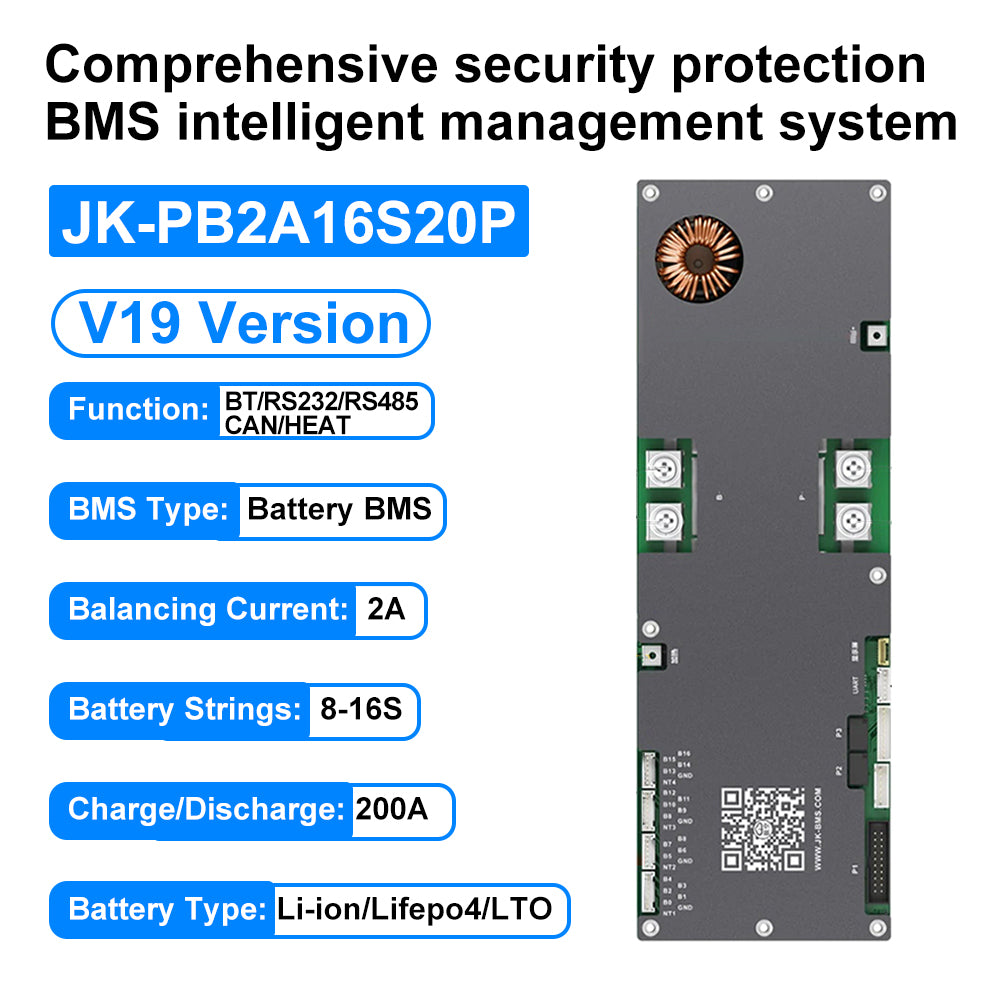

• BMS Features:

  • Built-in LCD status monitoring

  • Bluetooth connectivity for remote control

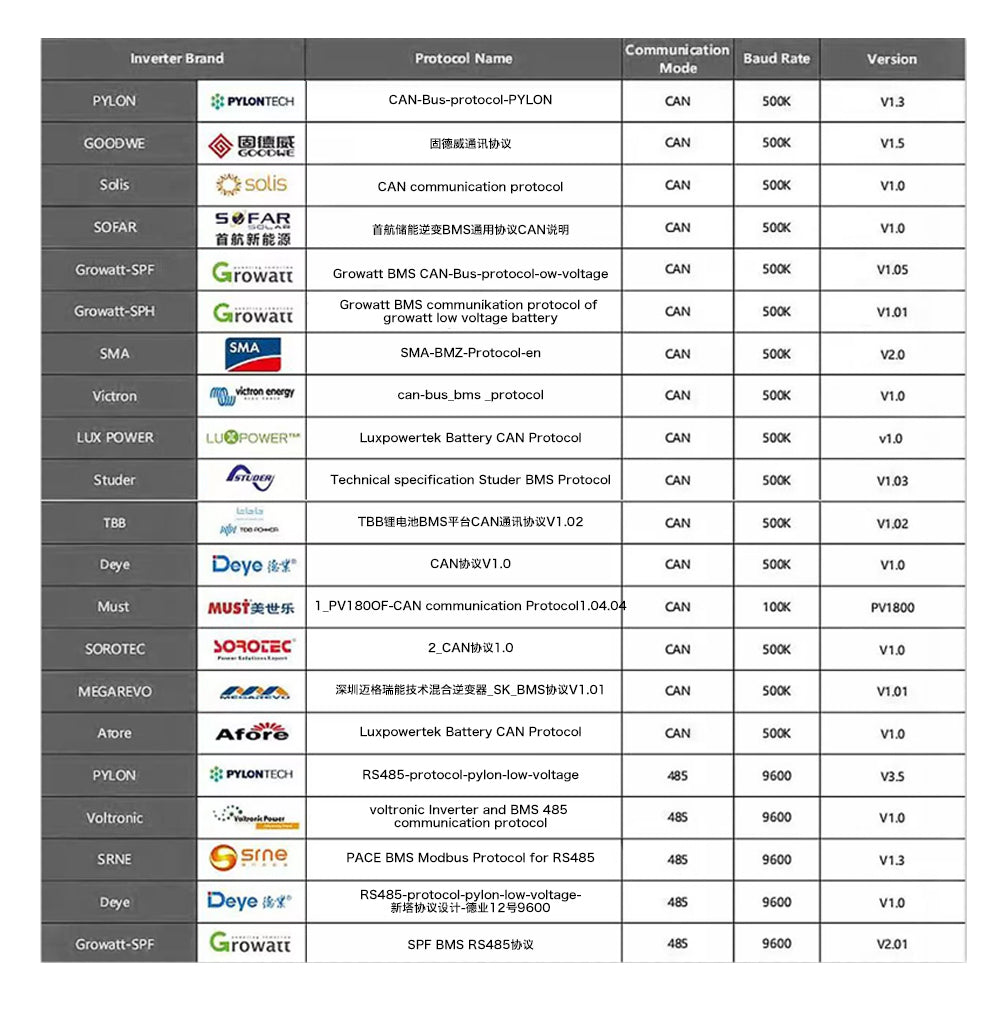

  • Multi-protocol support: RS485 / CAN bus

  • Overcharge/over-discharge protection
