Deligreen Battery

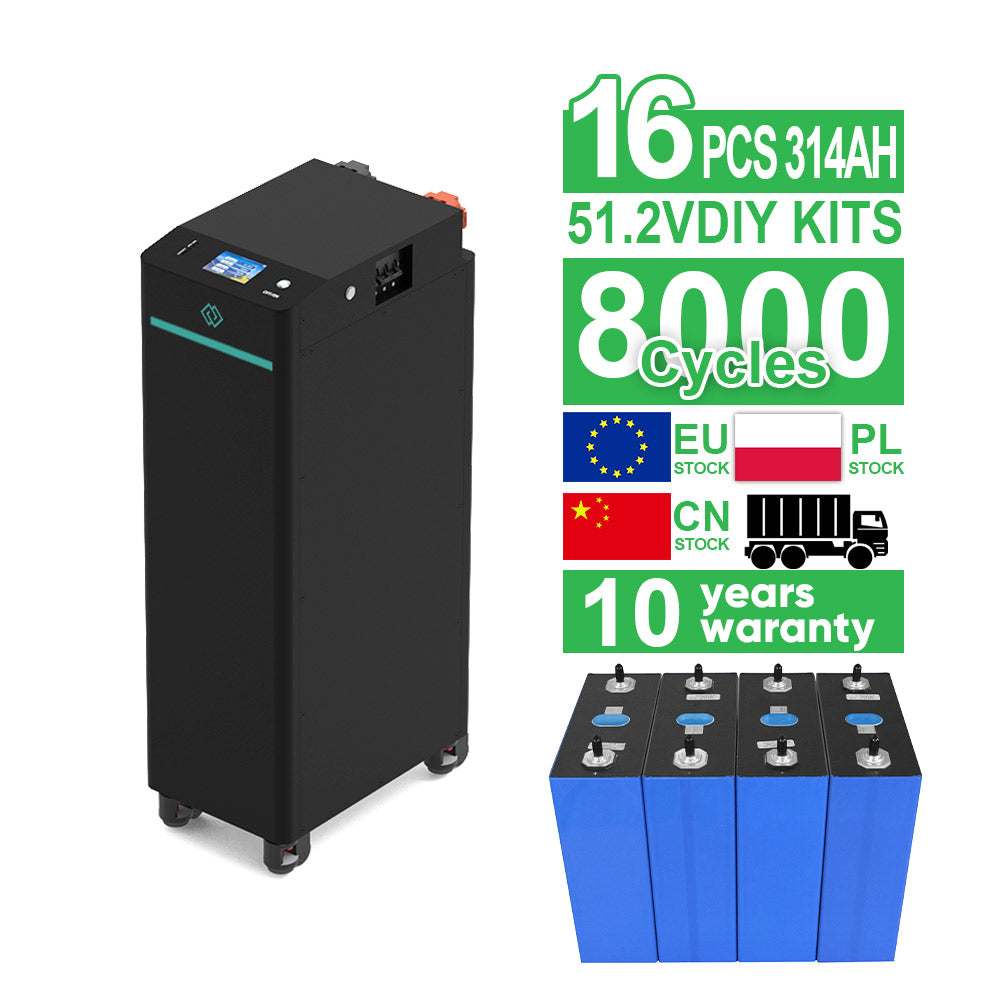

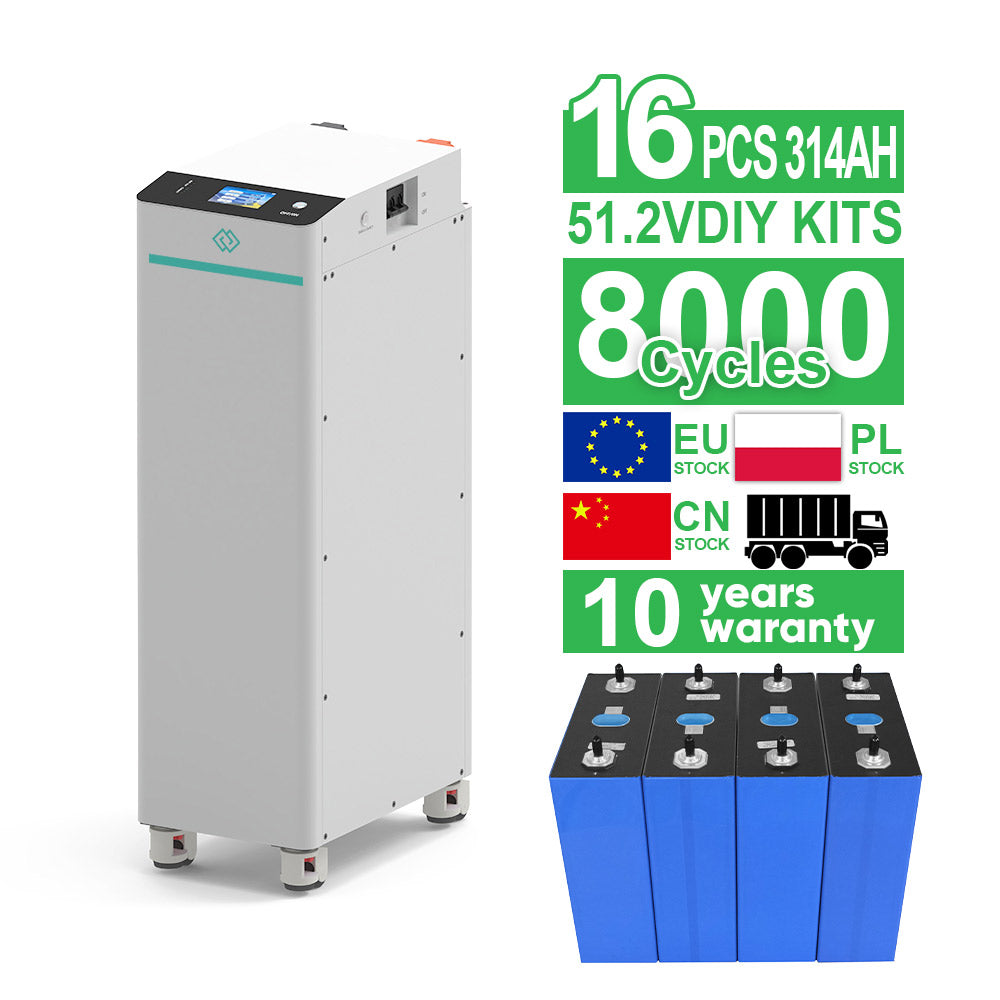

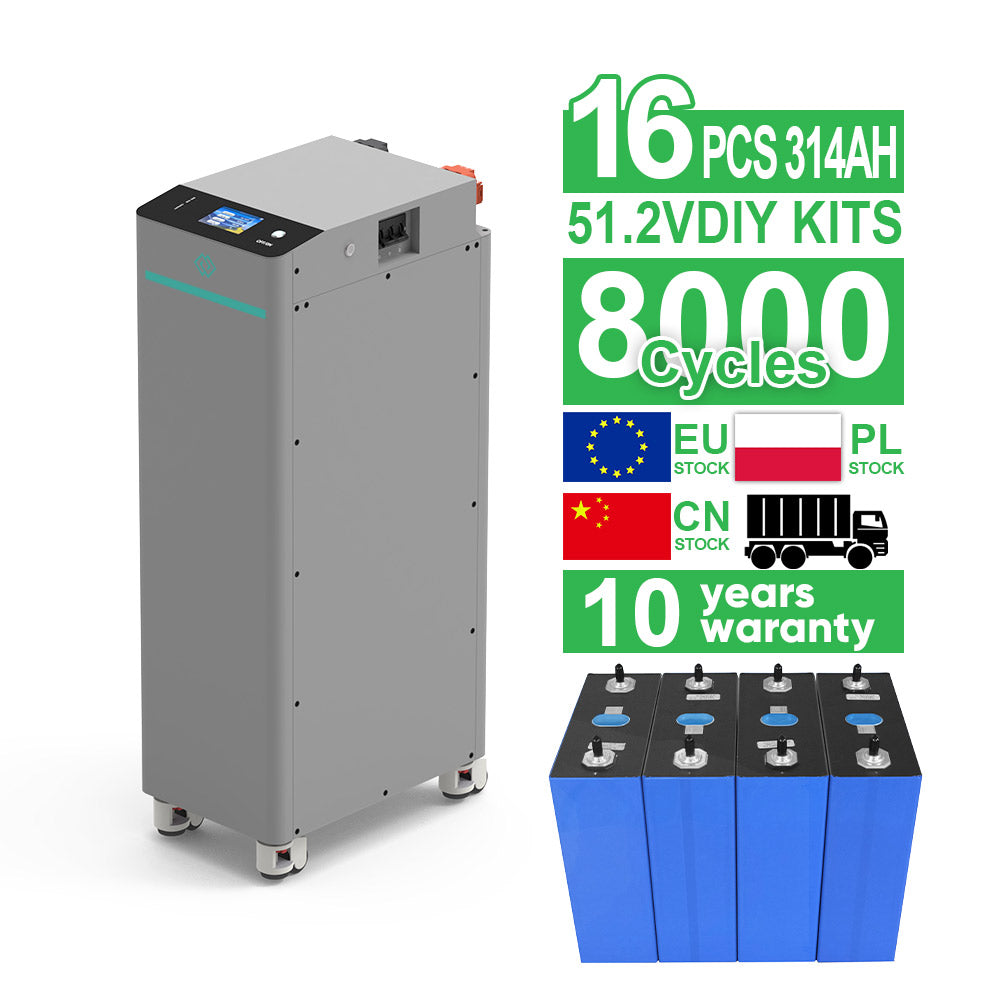

Seplos V4 48V314AH DIY Battery Kits For 16Kwh Solar Battery System
Seplos V4 48V314AH DIY Battery Kits For 16Kwh Solar Battery System
Couldn't load pickup availability
Basic Introduction

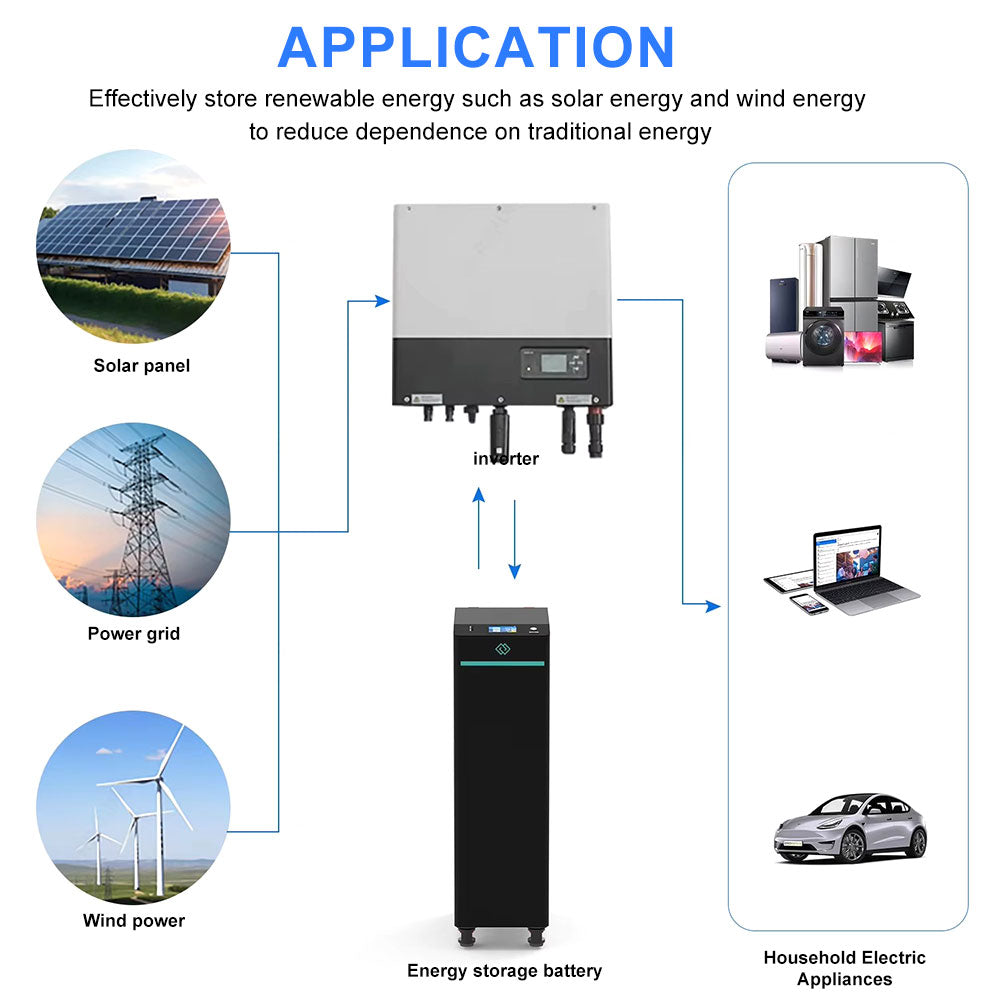

This battery system is suitable for household energy storage and small and medium-sized commercial energy storage. We offer you grade A EVE314AH to build a 1-parallel 16-series battery module with an intelligent 16S200A BMS to form a 51.2V314AH lithium battery system. The system supports up to 16 groups of batteries in parallel. This battery will be compatible with most common and famous inverter brands in the market.
2025 New Upgrade V4 Battery Box
Battery configuration: 1P16S
Nominal Voltage: 51.2V
Working voltage range: 43.2V~58.4V
Rated Capacity: 314AH
Energy: 16KWH
Standard charging/ discharging current: 100A/200A@25+2℃
Maximum charging current: 200A@25+2℃
Maximum discharge current: 200A@25+2℃
Working environment temperature: 0~40°℃(charge) -20~40°C(Discharge)
Storage temperature and humidity: -100C~35C(1 months)25+2°C(3 months)65%+20%RH

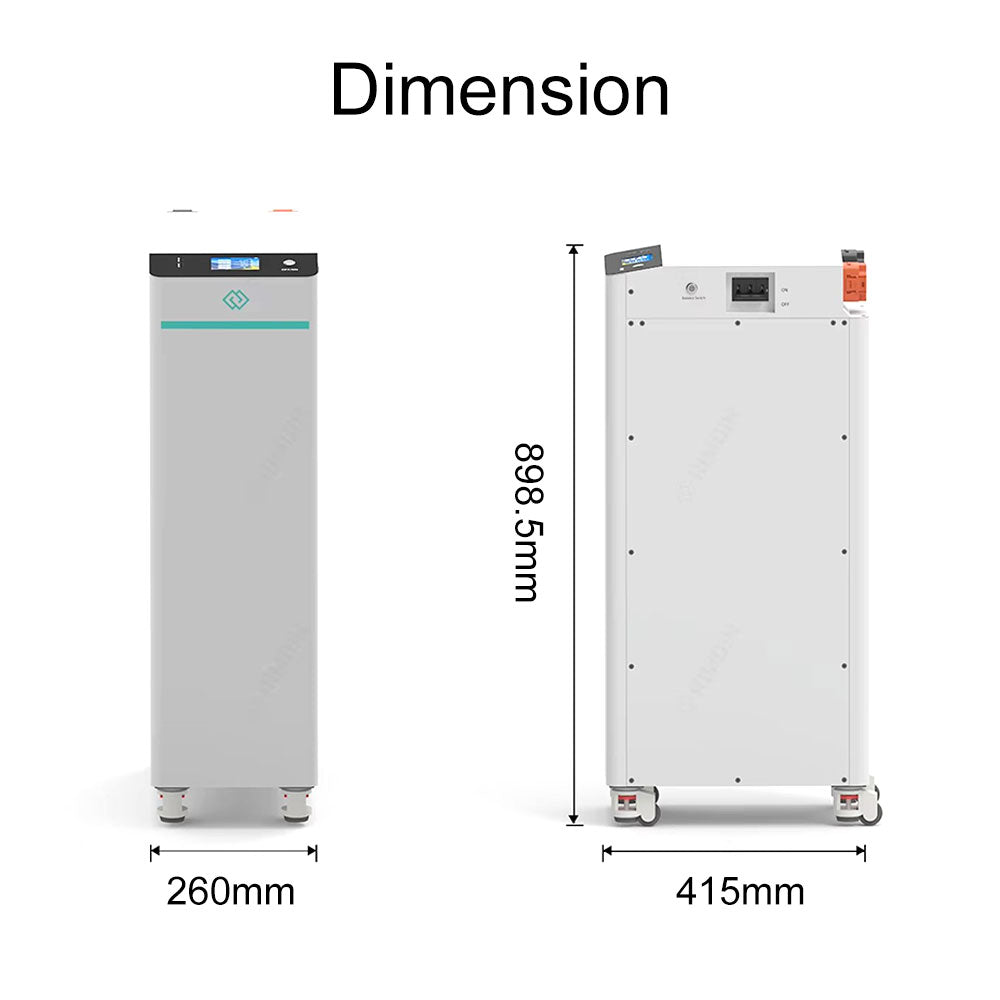

Dimension(LxWxH): 260*415*898.5mm
Weight: 132kg( with battery)
Cycle life: 8000cyels@25°C50A charge discharge current 80%DOD
IP level: IP20
Communication: CAN/RS485
Altitude: 0-3000m
Humidity range: 5%-95%
MB 31 EVE314Ah 3.2V Lifepo4 Battery Specification
Battery type: lithium iron phosphate cell（3.2V 314AH LIFEPO4)
Norminal Capacity: 314Ah
Real Capacity: 330Ah
Standard charge/discharge current: 0.5C
Max charge/discharge current: 1C
Internal impedance: 0.2mΩ
Nominal voltage: 3.2V
Dimensions(L*W*H): 174*72*203mm
Shell Material: Aluminum
Weight: 5.6 ± 0.3 kg
Recommend constant current: 1C
Recommend constant current: 0.5C
Charging voltage: 3.65 v
Discharging voltage: 2.5 v
Life cycle (80% dod): 0.5C 80% ≥8000Cycle
Charging temperature：0~60℃
Discharge temperature: -30~60℃
Operating Temperature：0~60℃
