CALB 3.2V 125AH LifePO4 Lithium Rechargeable Solar EV Battery

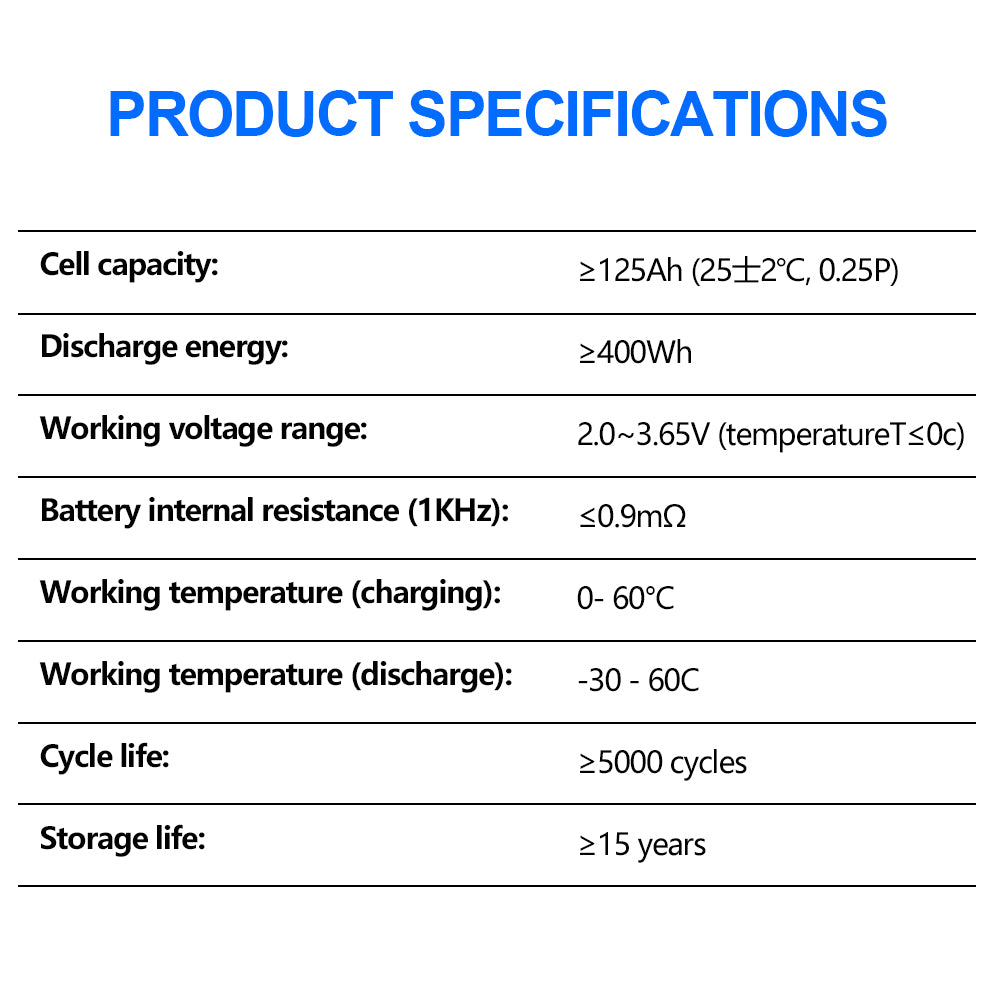

Battery Specification

Nominal Voltage: 3.2V
Nominal Capacity: 125Ah
Internal resistance: ≤0.9mΩ
Charging cut-off voltage: 3.65V
Discharge cut-off voltage: 2.5V (＞0℃); 2.0V (≤0℃)

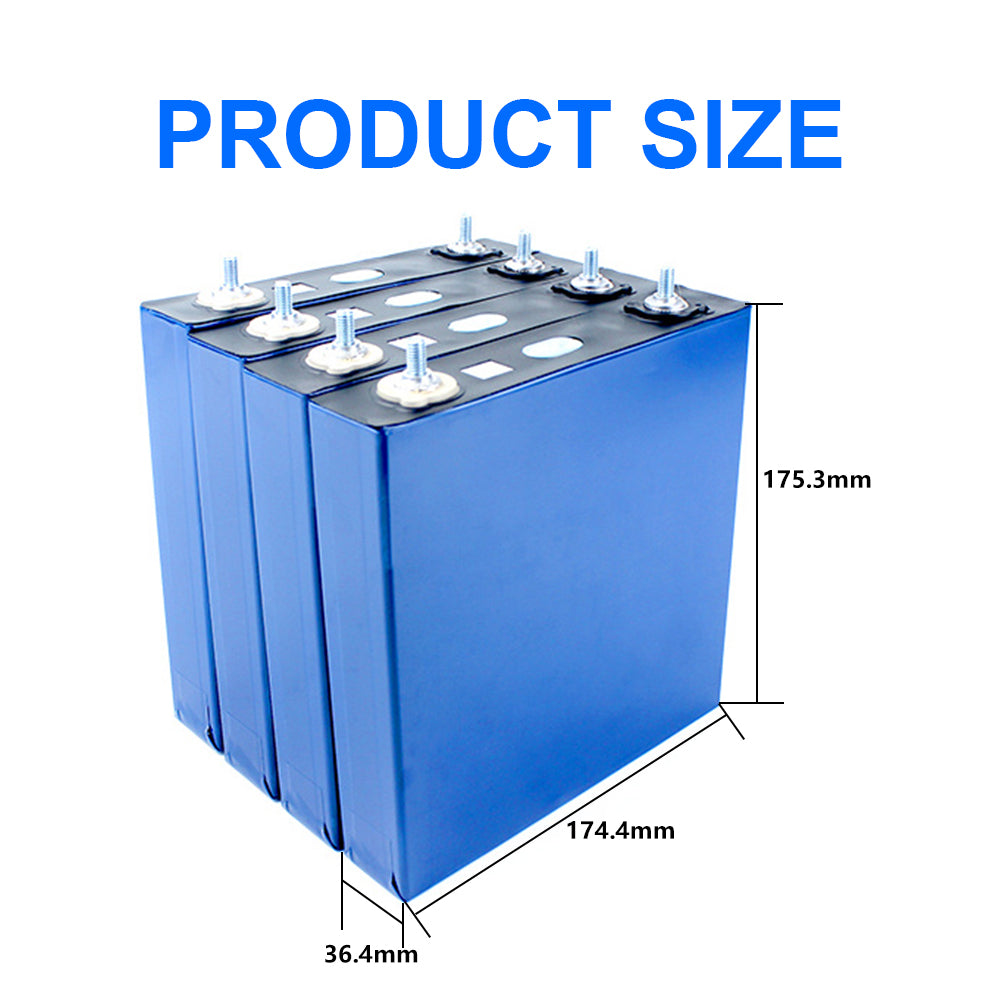

Battery Dimension (Not include the studs):
Height: 178±0.3mm
Length: 174.4±0.3mm
Thickness: 36.4±0.15mm
Center distance of pole: 116±0.3mm
Battery Weight: 2.45±0.15kg
Standard charge: 0.5C
Standard discharge: 0.5C
Max charge current: 1C
Max discharge current: 1C
Charging Temperature: 0~60 ℃
Discharge temperature: -20~60 ℃
Cycle life: ≥4000 Cycles, Capacity Retention ≥ 80 % (25℃ ± 2℃ @ 0.5C / 0.5C cycle)
